Spyda Roof Anchor – Clamp Set

Description

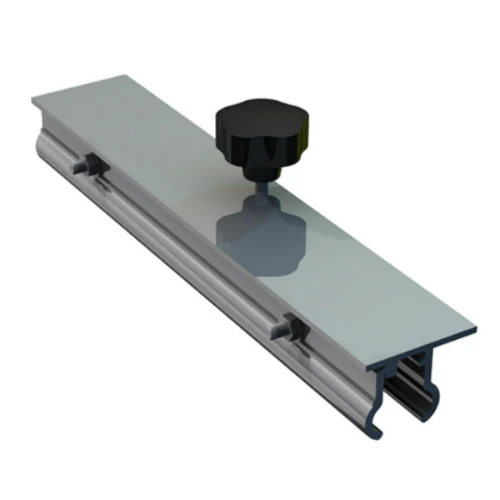

Clamp set to be used with the screw-fix temporary anchor point to suit clip-fix roofs.

• Set of four clamps, including fixings
• Includes storage bags
• Weight: 4.3kg

Substructure requirements

• To be used with clip-fix roofs only, other roofs are non-compatible.
• Refer to installation manual for more information.

Compliance

AP145 Temporary Anchor is designed and manufactured in accordance with requirements of Australian Standards AS/NZS 1891.4:2009 and relevant statutory OHS Codes of Practice/Guidelines.

Testing

Testing and performance based on requirements of Australian Standards AS/NZS1891.4.2009. and AS/NZS 5532:2013

Product Warranty

3 years from the date of purchase subject to correct installation. Use and maintenance to be in accordance with manufacturer’s specifications and recommendations.

Inspection & maintenance

Inspection and certification required every 12 months by competent Height Safety System Inspector in accordance with manufacturer’s specifications and requirements of Australian Standard AS/NZS 1891.4:2009 Section (9). This device has a 10 year usage life span after which it must be removed from service. (As per AS/NZS 1891.4:2009 & AS/NZS 5532:2013)

Important notes

Failure to supply and/or install proprietary product in accordance with above standards and codes, specifications and instructions voids complete system certification and/or warranty.
